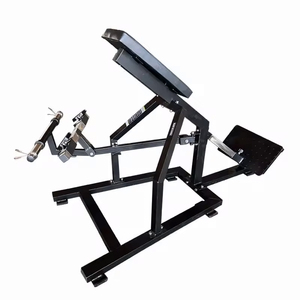

Commercial Gym Equipment Popular T Bar Rower Reloaded Incline Level Row Multi-Gym Steel Machine
ZOFAN Plug Seated Leg Kick Trainer Steel Selectorized Standing Squat Calf Raise Machine
CAWY Professional Commercial Machine Super Horizontal Calf Strength Training Equipment

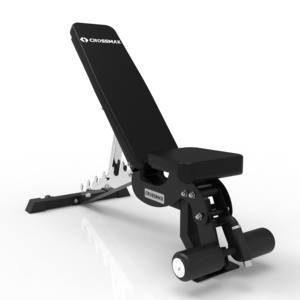

Crossmax Adjustable Bench | Heavy - Duty Gym Bench for Home & Commercial Use

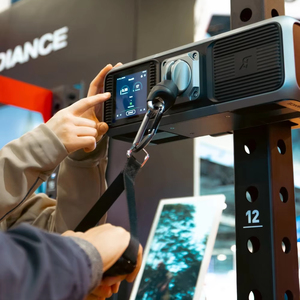

Innovative Portable Smart Cable Trainer Gym Digital Resistance Machine Commercial Unit
Professional Magnetic Resistance Indoor Seated Rowing Machine with Digital Monitor
BLD Commercial Steel Machine Big Flying Bird Multifunctional Gantry Smith Equipment
Engineering Excellence in Commercial Cable Crossover Machines
In the modern commercial fitness landscape, the Cable Crossover Machine stands as the single most versatile anchor piece on any strength training floor. Designed to facilitate multi-planar movement patterns, isolates dynamic force curves, and accommodate lifters of all biomechanical profiles, cable-based resistance systems are indispensable. As a premier **Cable Crossover Machine Factory and Exporter**, our manufacturing paradigm centers on high-grade material selection, vertical integration, precision laser fabrication, and rigorous biomechanical validation.
Whether servicing high-volume commercial health club chains, collegiate varsity weight rooms, luxury hospitality suites, or regional equipment distributors, our factory direct solutions guarantee structural longevity under extreme fatigue cycles. By engineering frame geometries using 11-gauge steel tubing (3mm minimum wall thickness) paired with military-grade aircraft cables, we eliminate structural deflection and mechanical drag, delivering an effortlessly fluid movement pattern.
Key Structural Benchmarks of Commercial Grade Cable Systems
Factory direct manufacturing permits complete oversight of every physical metric. Standard commercial units often fall short under heavy usage due to thin-wall steel tubing, sub-par pulley bearings, and dynamic cable stretch. Our whitepaper research indicates that upgrading from standard 14-gauge tubing to cold-rolled 11-gauge structural steel increases tensile yield strength by over 45%, preventing frame twisting during asymmetrical heavy pulling exercises.
Heavy-Duty Chassis
Fabricated from electro-welded 11-gauge Q235/Q355 steel frames, treated with multi-stage electrostatic zinc-rich powder coating for corrosion resistance.
Biomechanical Pulleys
Fiberglass-reinforced nylon pulleys equipped with sealed Japanese NSK precision ball bearings prevent cable jump and maintain silent operational fluidity.
Military-Grade Cables
7x19 strand jacketed steel aircraft cables rated to withstand over 2,500 lbs (11.1 kN) of tensile force, certified for non-stretch long-life cycles.
Biomechanical Cable Kinematics: 1:2 vs 1:1 Mechanical Advantage
When procuring functional trainers and commercial cable crossover gantry systems from overseas manufacturing plants, understanding pulley resistance ratios is vital for proper floor positioning and user engagement:
The 1:2 Resistance Ratio (Dual Adjustable Pulley Standard): In a 1:2 ratio setup, a 100 lb weight stack delivers 50 lbs of functional resistance at the handle. This configuration doubles the cable travel distance (typically providing up to 96 inches of stroke length per handle), allowing explosive athletic movements, high-speed velocity training, and complete range of motion for sports-specific protocols without bottoming out the stack.
The 1:1 Resistance Ratio (Heavy Isolation Standard): In contrast, traditional fixed cable crossovers or specialized heavy lat/row stations utilize a 1:1 mechanical advantage where 100 lbs of weight stack equals 100 lbs of direct tension. This ratio is preferred by bodybuilding facilities demanding maximum overload within shorter movement arcs.
| Specification Metric | Commercial Grade (Our Factory Direct) | Light Commercial / Retail Grade |
|---|---|---|
| Structural Frame Steel | 11-Gauge (3.0mm) Heavy-Duty Q235 Steel Tube | 14 to 16-Gauge (1.5mm - 2.0mm) Thin Steel |
| Weight Stack Guide Rods | Solid Hard-Chrome Plated 25mm Steel Rods | Hollow or Thin Chrome Plated Rods |
| Pulley Swivel Arc | 180° - 360° Continuous Smooth Swivel Mounts | Fixed or Restricted Angle Pulleys |
| Surface Finish | Dual-Coat Electrostatic Powder Coating + Clear Coat | Single-Layer Paint Coating (Prone to Chipping) |
| Weight Stack Enclosure | Full Structural Steel Laser-Cut Shrouds | Plastic or Fabric Dust Covers |
| Cable Tension System | Micro-Adjustable Tension Screw Mechanism | Fixed Cable Clamps (Requires Manual Re-knotting) |
Global Sourcing Trends & Future Tech in Cable Equipment Manufacturing
As international fitness equipment procurement shifts toward data-driven ROI and space optimization, OEM/ODM manufacturing capability has become a critical evaluation criterion for commercial gym operators and wholesale importers. Based on broad B2B export data across North America, Europe, and Asia-Pacific markets, several key technological and manufacturing trends are reshaping cable machine production for 2025–2030:
1. Modular Footprint & Hybrid Gantry Systems
Modern facility architects are steering away from single-purpose strength machines in favor of modular gantry racks. Multi-station cable crossovers integrated with Smith machines, power racks, landmine attachments, and multi-angle pull-up stations maximize square-footage revenue. Our OEM production lines allow custom footprint scaling, enabling 4-stack, 5-stack, 8-stack, and 360-degree perimeter rack installations.
2. Digital Resistance & Smart Load Sensing Integration
The integration of digital tracking sensors into selectorized weight stacks represents a major leap in commercial strength training. Our modern factory options support smart cable sensor retrofitting, which captures peak force output, eccentric velocity, repetition tempo, and total mechanical work output via Bluetooth/ANT+ modules for athletic performance monitoring.
3. Eco-Friendly Manufacturing & Zero-VOC Finishing
Environmental standards in international supply chains now dictate clean manufacturing processes. Our factory incorporates closed-loop water recovery systems for metal pre-treatment washings and uses 100% solvent-free, non-toxic powder coating processes that comply with EU RoHS and REACH environmental mandates, ensuring sustainable global export clearance.
Enterprise Advantages: Why Partner with Our Cable Machine Factory?
Sourcing commercial gym equipment directly from an established manufacturing enterprise eliminates middleman markups, accelerates custom design cycles, and provides peace of mind regarding quality assurance. Reflecting our Canadian-engineered heritage and deep biomechanical expertise, our production facilities combine state-of-the-art automation with rigorous manual quality inspections.
Vertical OEM/ODM Customization
From frame laser-cutting to custom laser-etched branding plates, custom frame colors, and upholstery stitching, we match your exact corporate brand identity.
Robotic Laser Welding
Automated 6-axis robotic welding arms execute seamless continuous frame joints, eliminating structural weakness and offering lifetime structural warranties.
Container Freight Optimization
Our flat-pack structural engineering reduces shipping volume by up to 35%, significantly reducing per-unit sea freight transit costs for overseas distributors.
